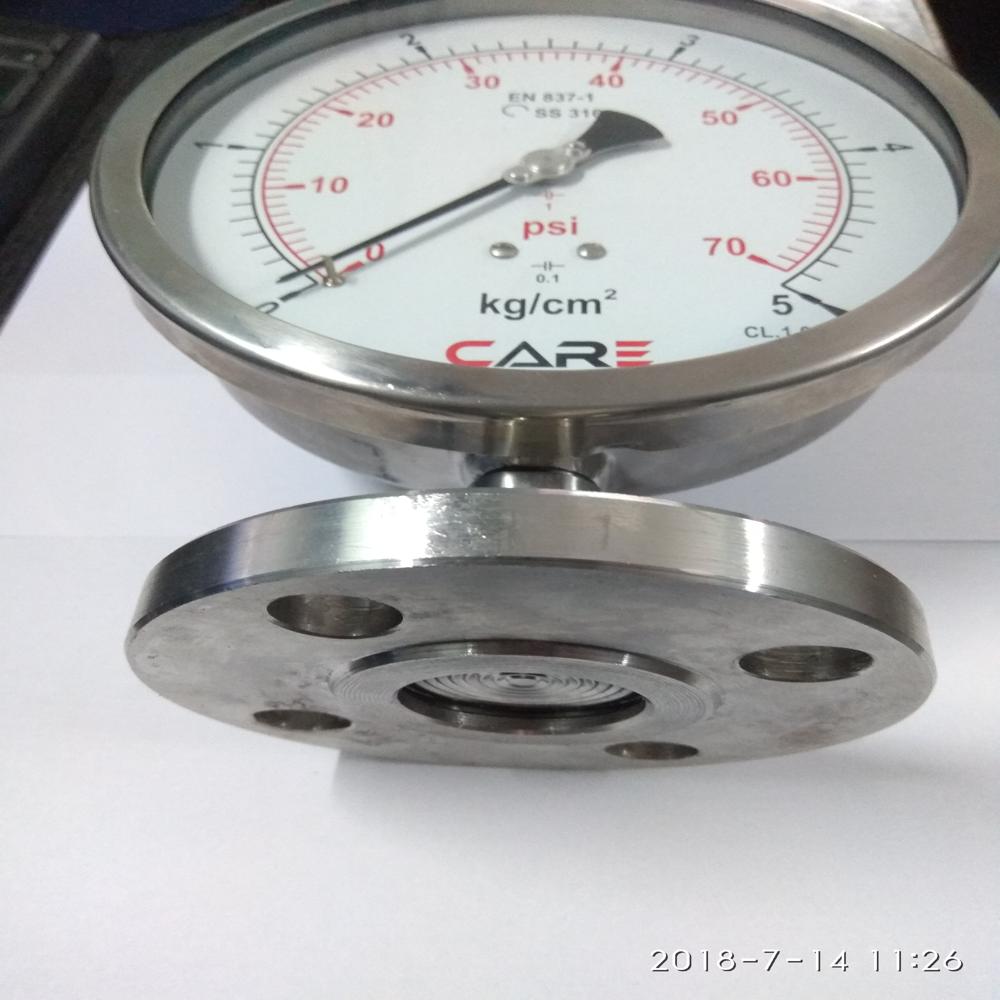

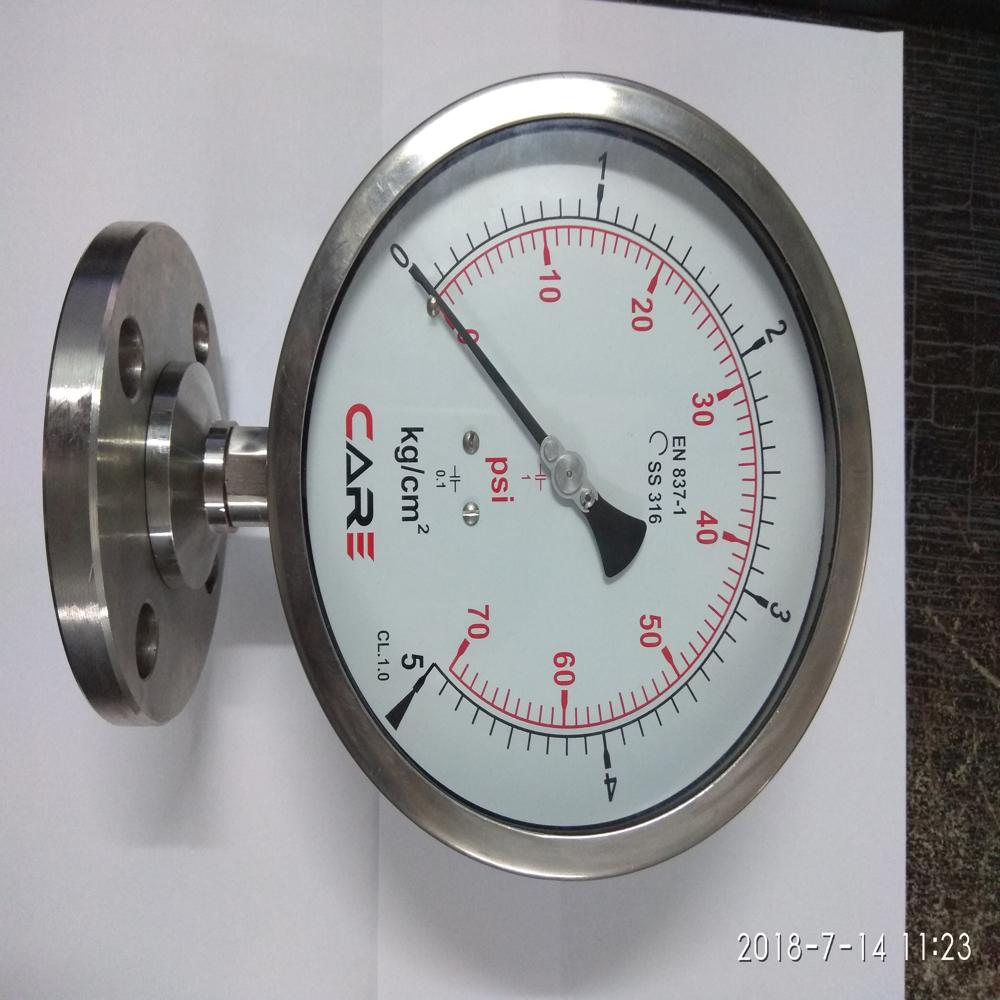

Chemical Sealed Pressure Gauge

Chemical Sealed Pressure Gauge
Chemical Sealed Pressure Gauge
Product Code : na
Product Description

APPLICATIONS

With Liquid-filled case for applications with high dynamic pressure liquid media that ill. Pulsations or vibration suitable for corrosive environments and gaseous or not obstruct the pressure system.

Process Industry: Chemical / Petrochemical, Power Station, Mining, on and off shone, environmental technology, mechanical Engineering & Plant Construction

Features:

  • Design : EN387-1,
  • Agency Approvals : CE
  • Dial : 1.5” (40 mm), 2” (50 mm.), 2.5” (63 mm.), 6” (150 mm.), 8” (200 mm.), white aluminum,
  • Case : SS_304 or SS_316 (SS=Stainless Steel).
  • Window : Plain Glass or Safety Glass.
  • Pointer : Black aluminum. fixed or adjustable,Wide selection of connections and pressure ranges, Crimped ring or bayonet bezel.
  • Accuracy : 4”, 6, (± 1.6% with filling).
  • Nominal Size (mm) -100,150 mm
  • Scale Range - 0.. Vacuum to 700 kg/cm & Above on request
  • Accuracy in FSD - 1%
  • Thread Connection - 3/8", ½ ", BSP & NPT,& M-20 and flanged connection
  • Mounting of Gauge - Bottom, Surface,
  • Case and Bezel - Drawn steel, SS 304
  • Pressure Elements - Bourdon Tube
  • Diaphragm - Yes
  • Wetted Parts - Brass, SS 304 and other material on request
  • Application - Chemical and Petrochemical, Plastic and paper, Pharmaceutical, Water treatment.
  • Optional- Electric Contact, Back Mounting & Liquid Filled
