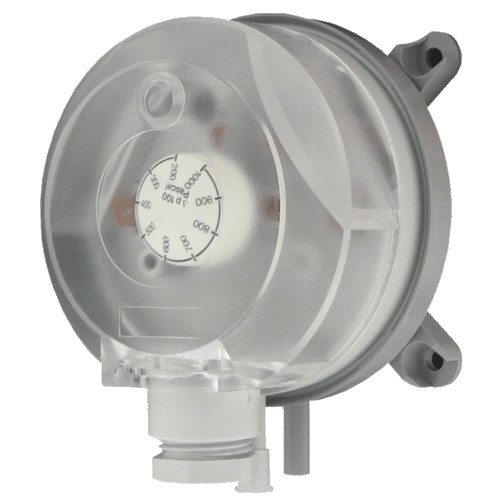

Dwyer Diff. Pressure Switch (ADPS)

Dwyer Diff. Pressure Switch (ADPS)
Dwyer Diff. Pressure Switch (ADPS)
Product Code : Dwyer
Product Description

Dwyer Diff. Pressure Switch (ADPS)

Features:

  • Service Air and non-combustible, compatible gases.
  • Wetted Materials Diaphragm Material: Silicone. Housing Material: Switch Body: PA 6.6 and POM; Cover: Polystyrene
  • Temperature Limits Process and ambient temperature from -4 to 185°F (-20 to 85°C)
  • Pressure Limits Max. Operating Pressure: 40" w.c. (10 kPa) for all pressure ranges
  • Switch Type Single-pole double-throw (SPDT).
  • Electrical Rating Max., 1.5A/250 VAC, max. switching rate: 6 cycles/min.; Gold Contact Option: 0.4 A/ 250 VAC
  • Electrical Connections Push-on screw terminals. M20x1.5 with cable strain relief or optional 1/2" NPT connection
  • Process Connections 5/16" (7.94 mm) outside diameter tubing, 1/4" (6.0 mm) inside diameter tubing
  • Enclosure Rating NEMA 13, IP54.
  • Mounting Orientation Vertically, with pressure connections pointing downwards
  • Mechanical Working Life Over 106 switching operations
  • Weight 5.6 oz (160 g)c
  • Agency Approvals CE, RoHS.
