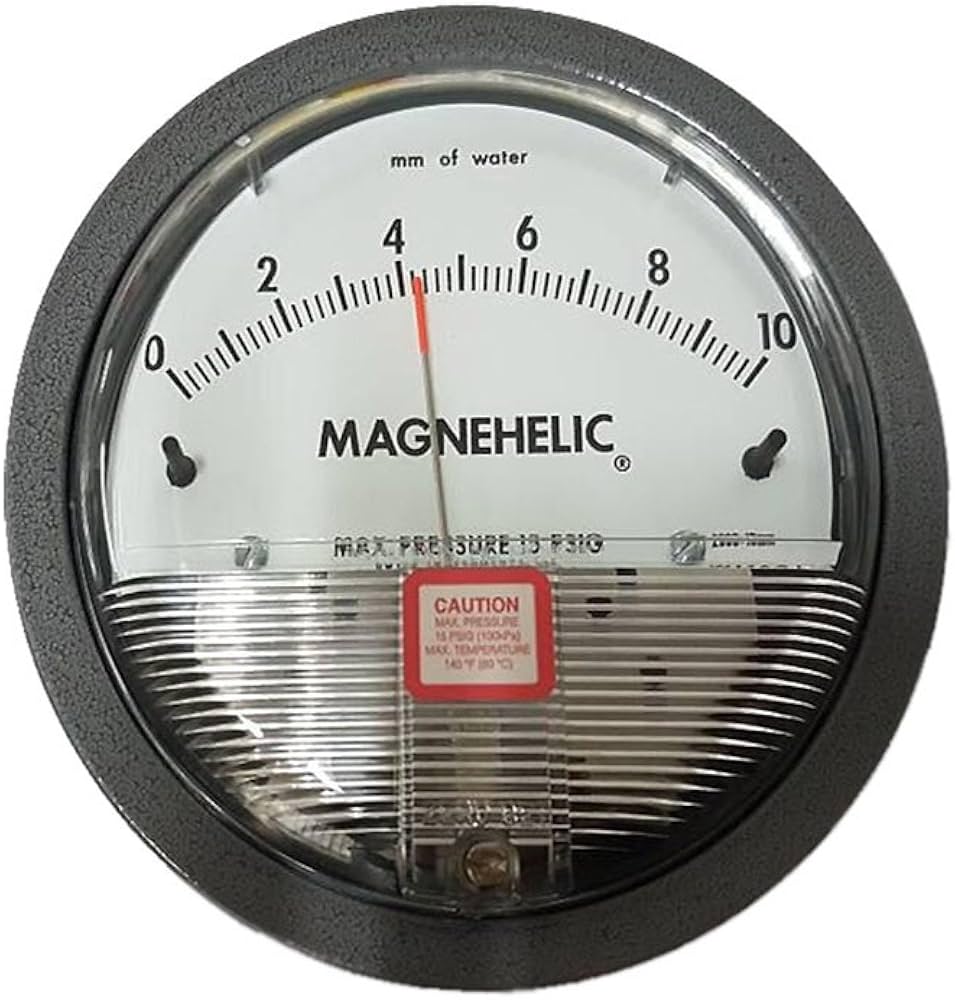

Dwyer Magnehelic Gauge

Dwyer Magnehelic Gauge
Dwyer Magnehelic Gauge
Product Code : Magnehelic
Brand Name : care
Product Description
  • SPECIFICATIONS

    Service: Air and non-combustible, compatible gases (natural gas option available).

    Wetted Materials: Consult factory.

    Housing: Die cast aluminum case and bezel, with acrylic cover. Exterior finish is coated gray to withstand 168 hour salt spray corrosion test.

    Accuracy: ±2% of FS (±3% on - 0, -100 Pa, -125 Pa, 10MM and ±4% on - 00, -60Pa, -6MM ranges), throughout range at 70°F (21.1°C).

    Pressure Limits: -20 in Hg to 15 psig† (-0.677 to 1.034 bar); MP option: 35 psig(2.41 bar); HP option: 80 psig (5.52 bar).

    Overpressure: Relief plug opens at approximately 25 psig (1.72 bar), standard gages only. See Overpressure Protection Note on next page.

    Temperature Limits: 20 to 140°F* (-6.67 to 60°C).

    Size: 4˝ (101.6 mm) diameter dial face.

    Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.

    Process Connections: 1/8˝ female NPT duplicate high and low pressure taps - one pair side and one pair back.

    Weight: 1 lb 2 oz (510 g), MP & HP 2 lb 2 oz (963 g).

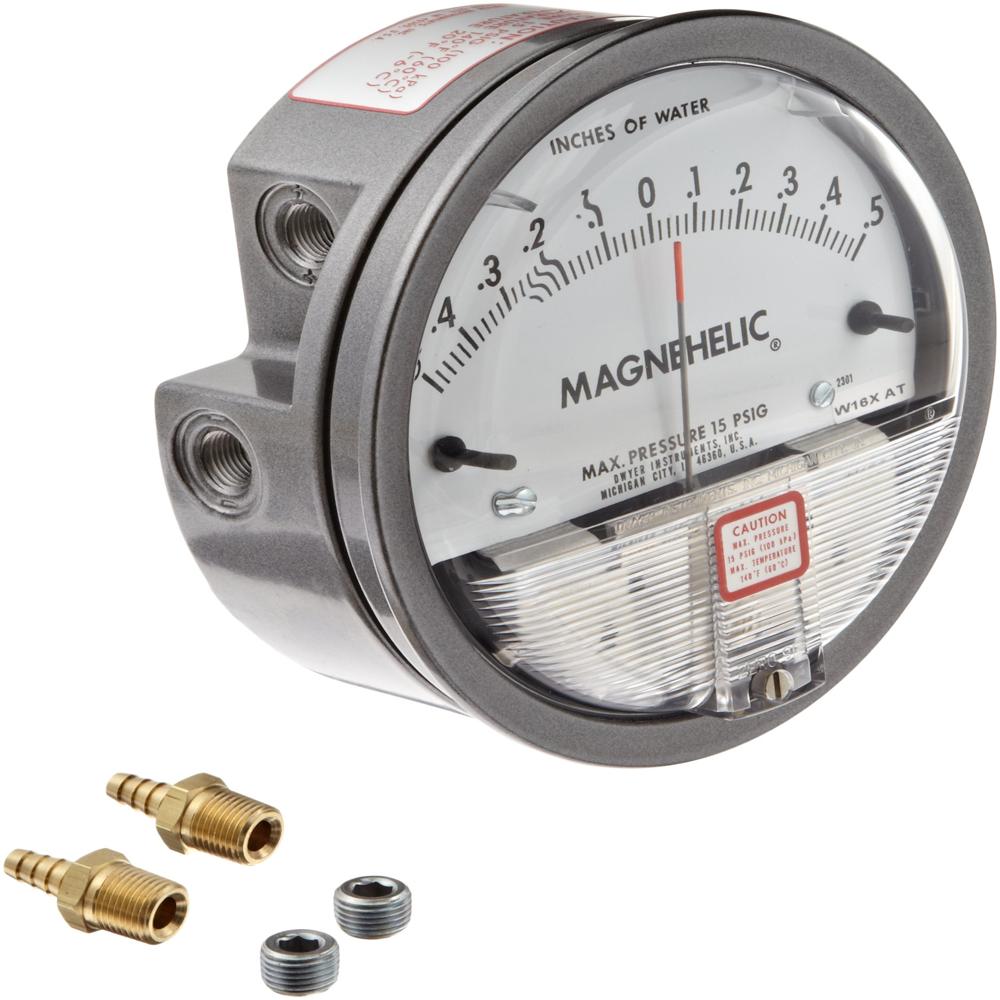

    Standard Accessories: Two 1/8˝ NPT plugs for duplicate pressure taps, two 1/8˝ pipe thread to rubber tubing adapter and three flush mounting adapters with screws. (Mounting and snap ring retainer substituted for three adapters in MP & HP gage accessories.)

    Agency Approval: RoHS.

    *Low temperature models available as special option.

    For applications with high cycle rate within gage total pressure rating, next higher rating is recommended. See Medium and High pressure options at lower left.
