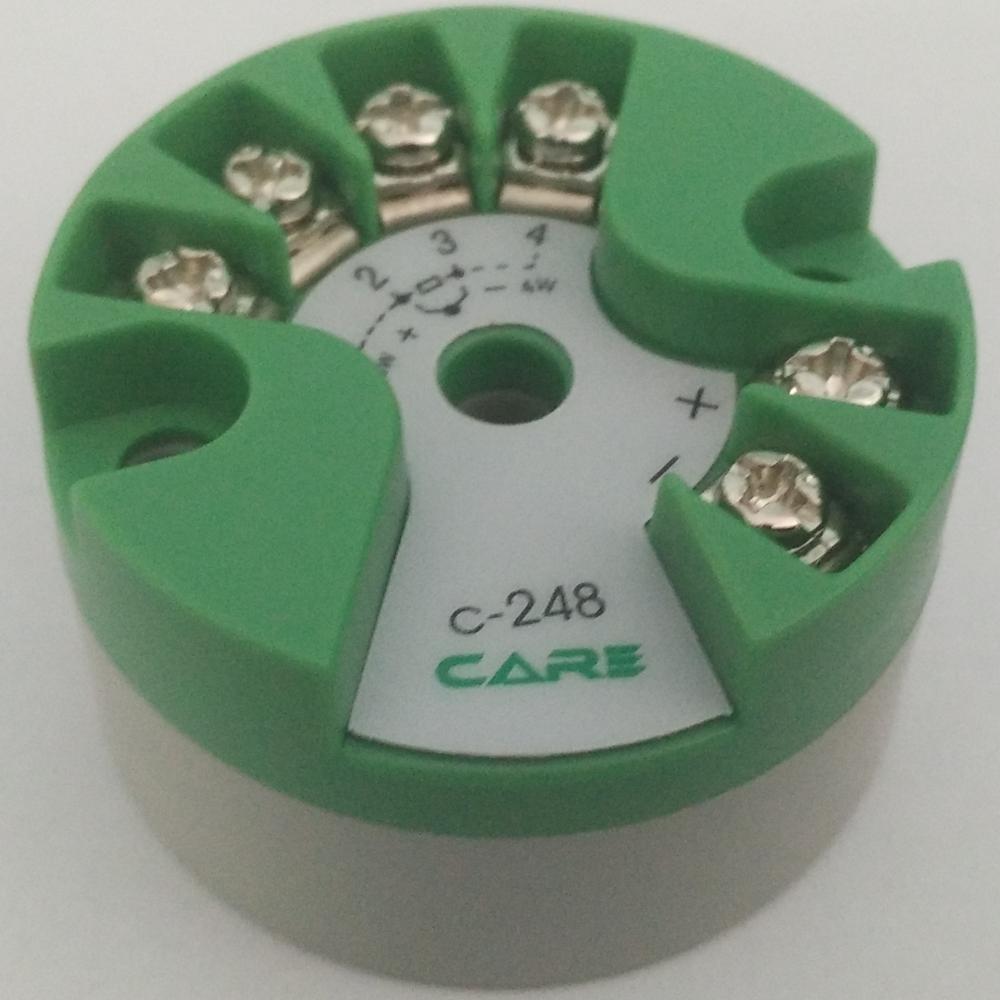

Head Mount Type Temp. Transmitter

Head Mount Type Temp. Transmitter
Head Mount Type Temp. Transmitter
Product Code : NA
Product Description

Special Features:

  • Programmable Input (Pt-100 2W / 3W / 4W)
  • Linear Signal Output
  • Current Loop Powered
  • PC Based Configuration via USB Cable
  • High Accuracy and Repeatability
  • Calibration Configuration with PC via USB Cable
  • Turn On Time 5 sec after power is applied

Specifications:

  • Input RTD- Pt100 2W / 3W / 4W
  • Output-4 - 20 mA, two wire
  • Accuracy-±0.1% of the calibrated span
  • Storage Temperature--40°C to 120°C
  • Operating Temp.- -40°C to 85°C
  • Loop Supply--40°C to 85°C
  • Loop Resistance-1600ohm @ 24V DC
  • Protection- IP-68
  • Update Rate-0.5 Sec.
  • Minimum Span-10ºC / 18ºF
