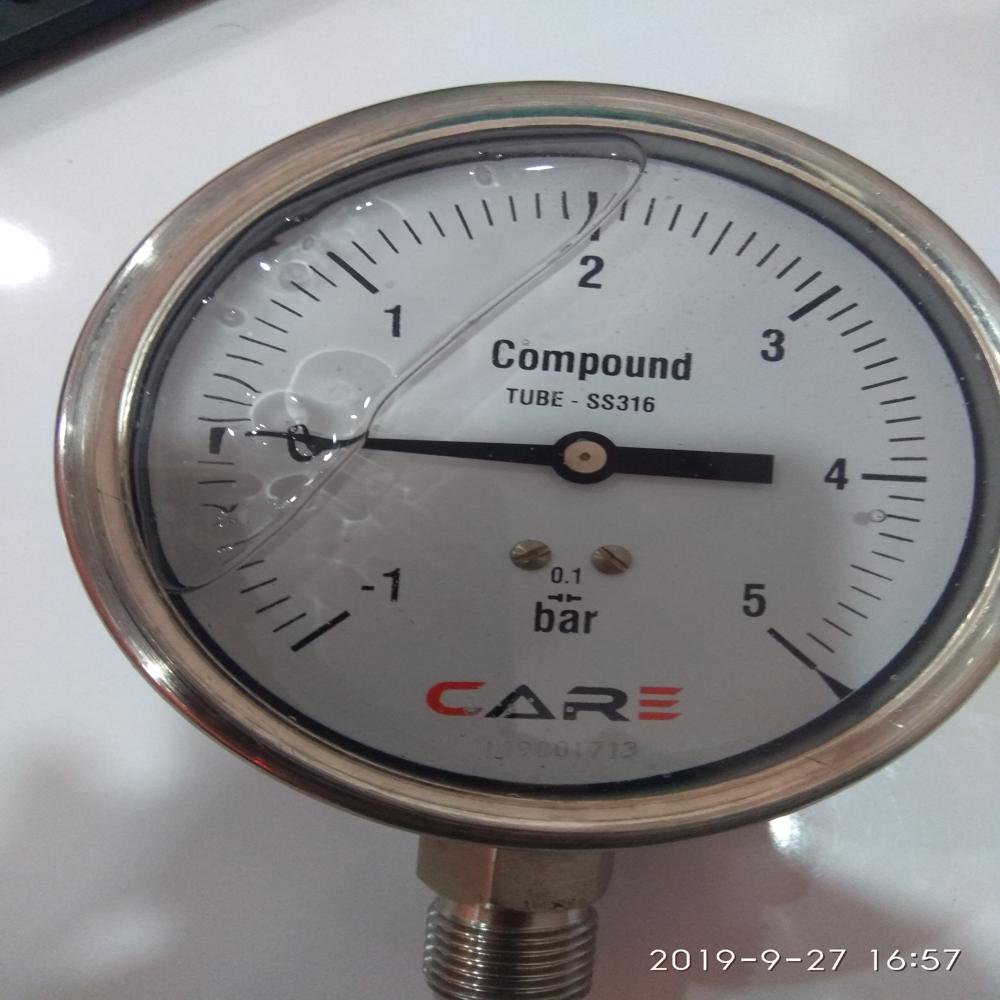

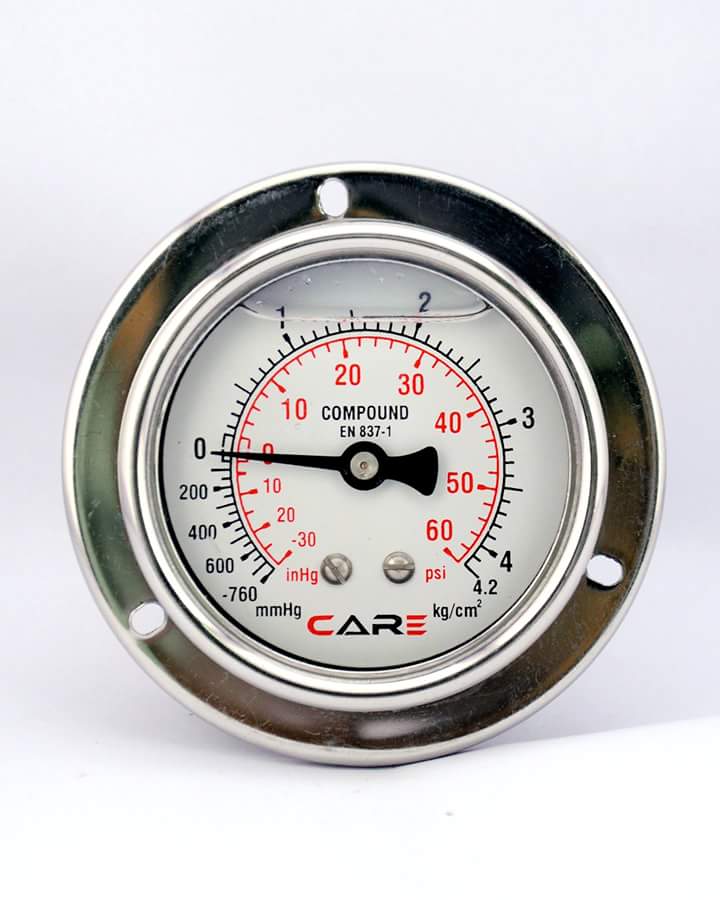

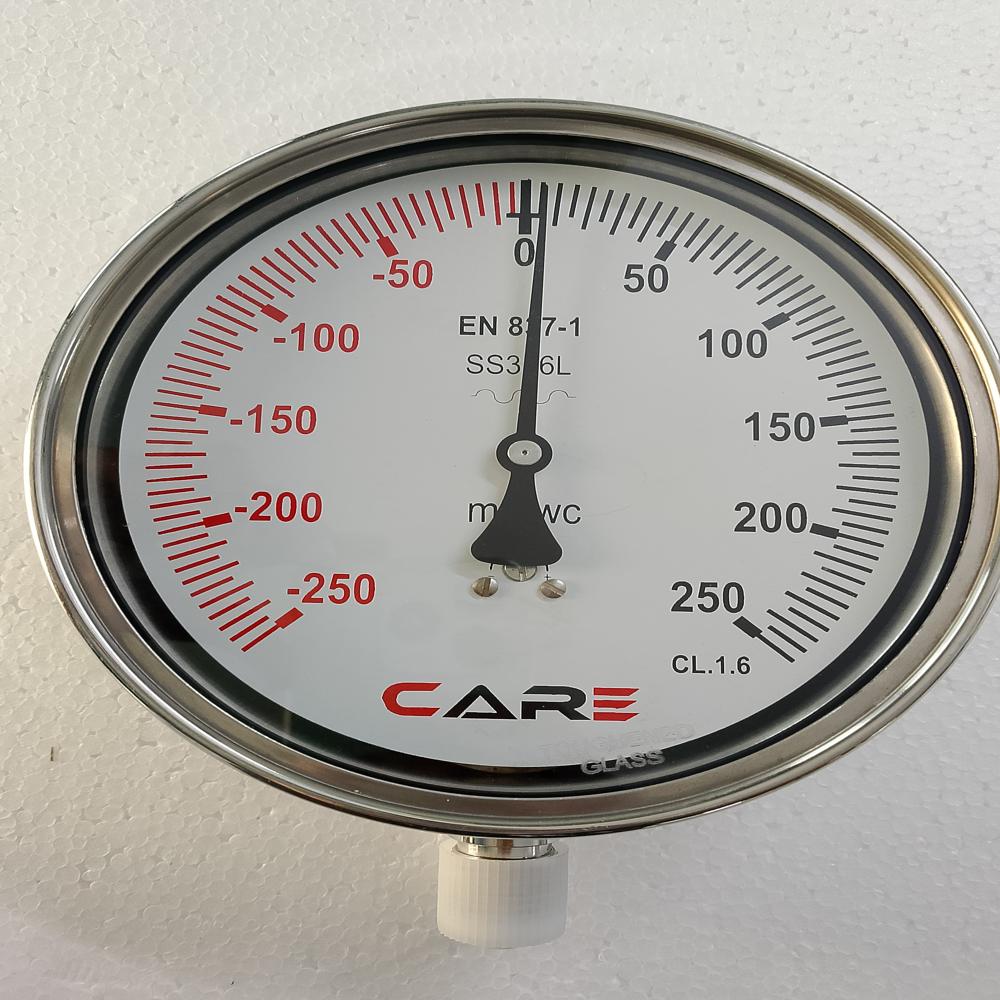

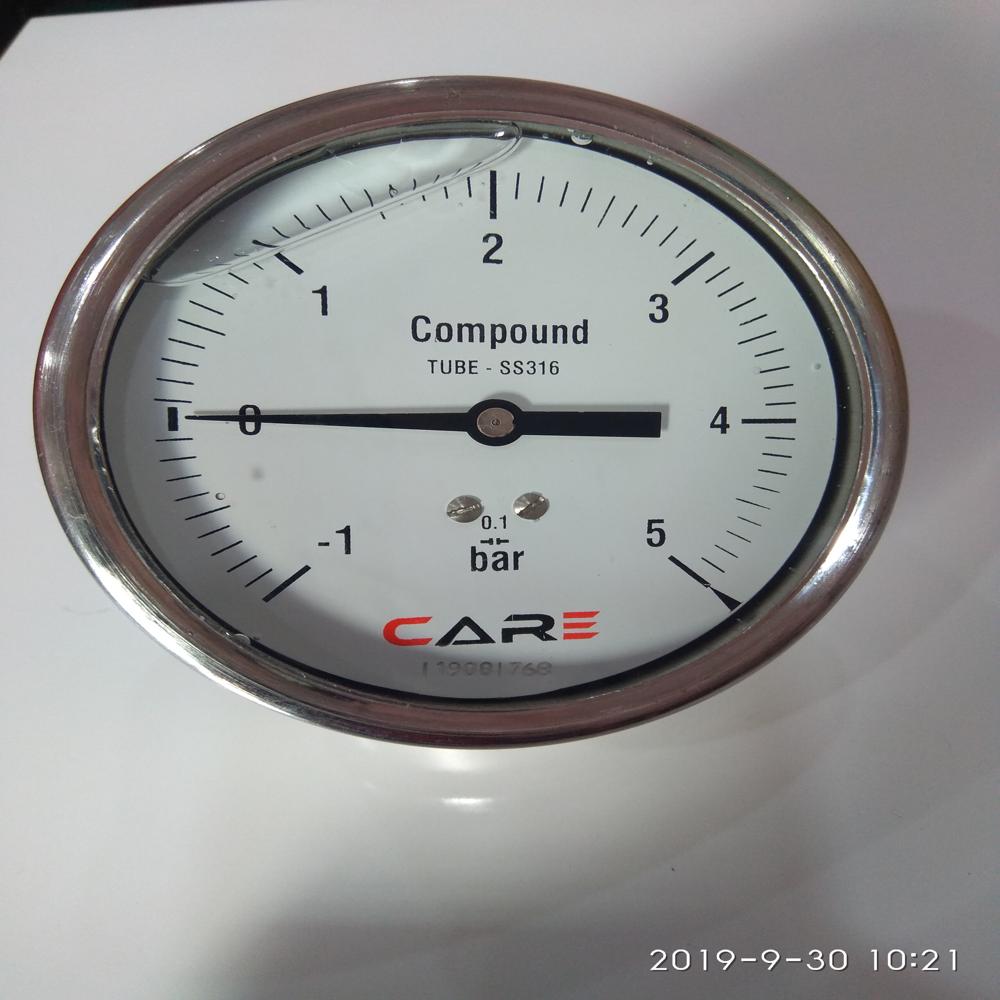

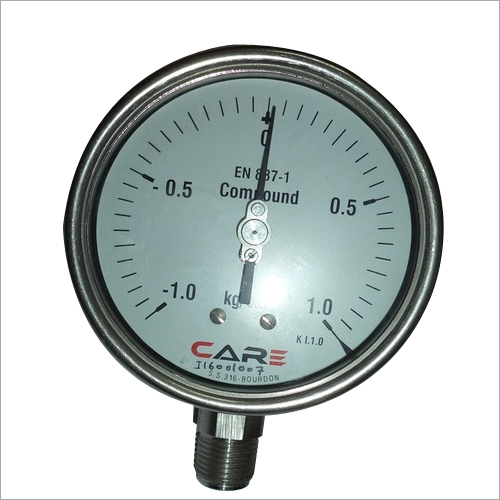

Compound Pressure Gauge

Product Description

APPLICATIONS

pressure liquid media that ill. Pulsations or vibration suitable for corrosive environments and gaseous or not obstruct the pressure system.

Process industries:- Chemical / Petrochemical, Power Station, Mining, on and off, shone, environmental technology, mechanical, construction.

Features:

• Design : EN387-1,
• Agency Approvals : CE
• Dial : 4"(100 mm.), 6" (150 mm.), 8" (200 mm.), white aluminum,
• Case : SS_304 or SS_316
• Window : Plain Glass or Safety Glass.
• Pointer : Black aluminum
• pressure ranges
• Accuracy : 4, 6, & 8 : 1.0% ( 1.6% with filling).
• Nominal Size (mm) - 40,50,63,80,100,150 ,250
• Scale Range - 0.. Vacuum to 700 kg/cm & Above on request
• Accuracy in FSD - 1%
• Thread Connection - 1/8", 1/4", 3/8", " BSP & NPT, M-10, M-12, M-20
• Mounting of Gauge - Bottom, Surface, Back, Panel with 3 holes, Panel with bracket
• Case and Bezel - Drawn steel, SS 304
• Pressure Elements - Bourdon Tube
• Diaphragm - Nil
• Wetted Parts - Brass, SS 304 and other material on request
• Application - Chemical & Petrochemical, Plastic & Paper Pneumatic Control System, Air Conditioning
• Optional - Liquid Filled
