Product Description

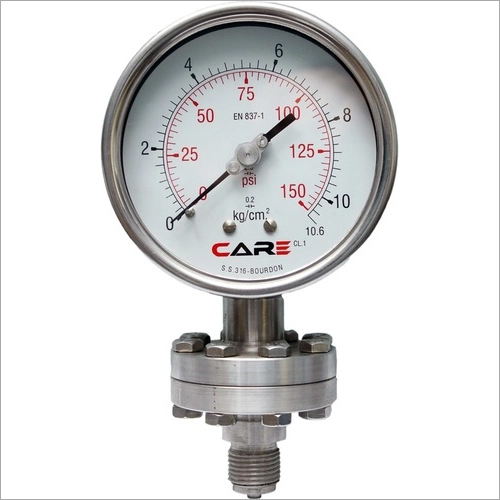

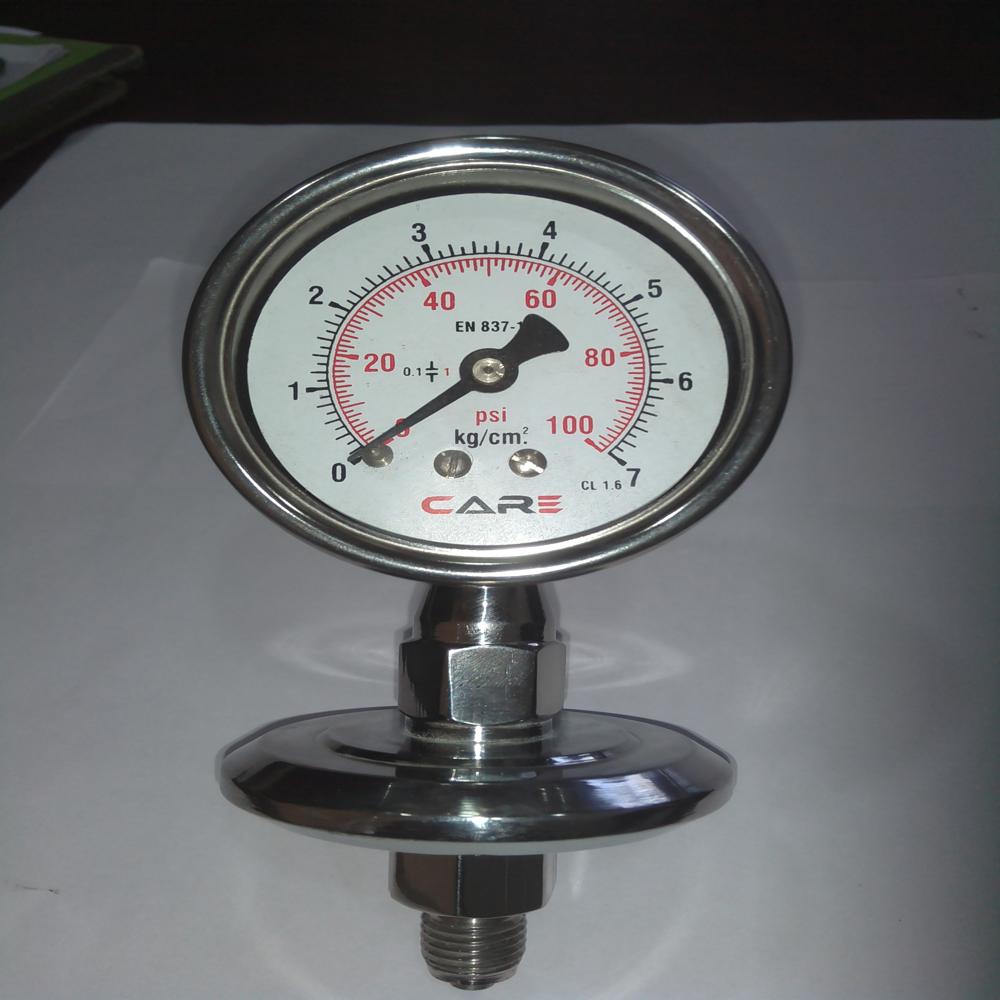

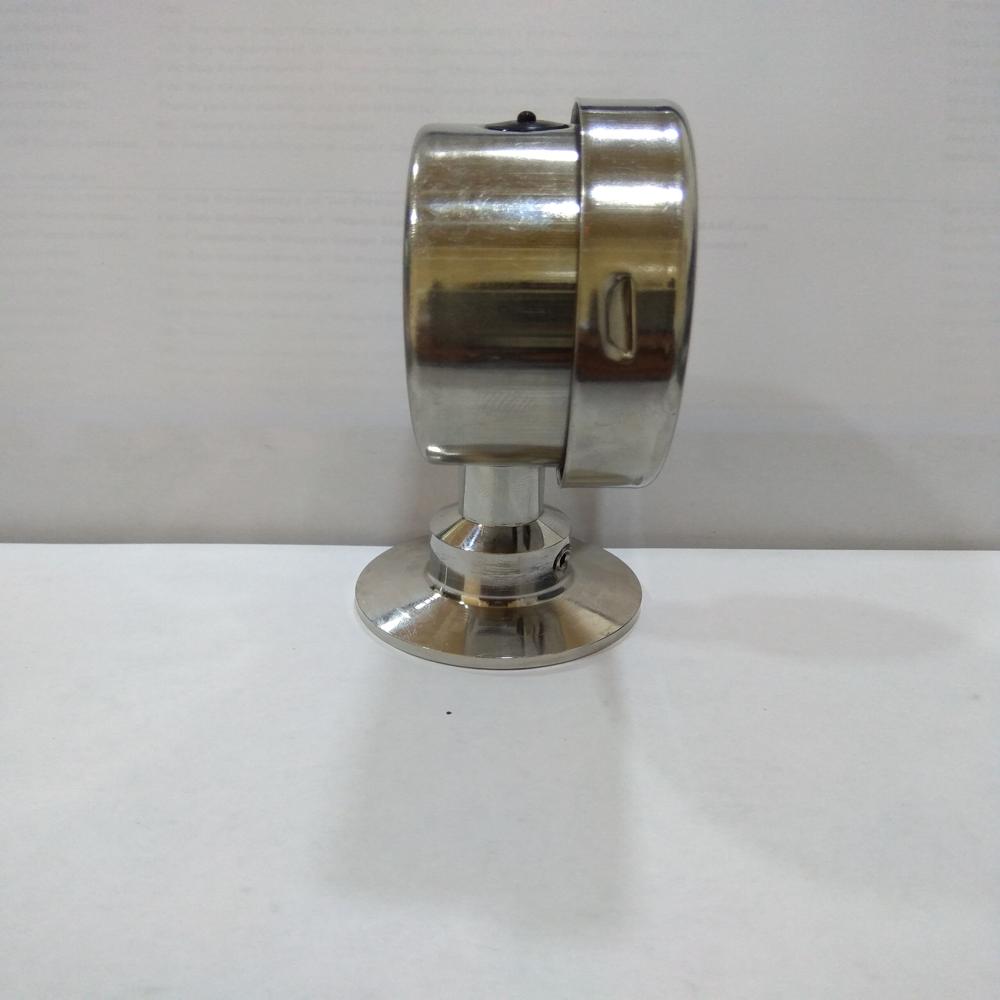

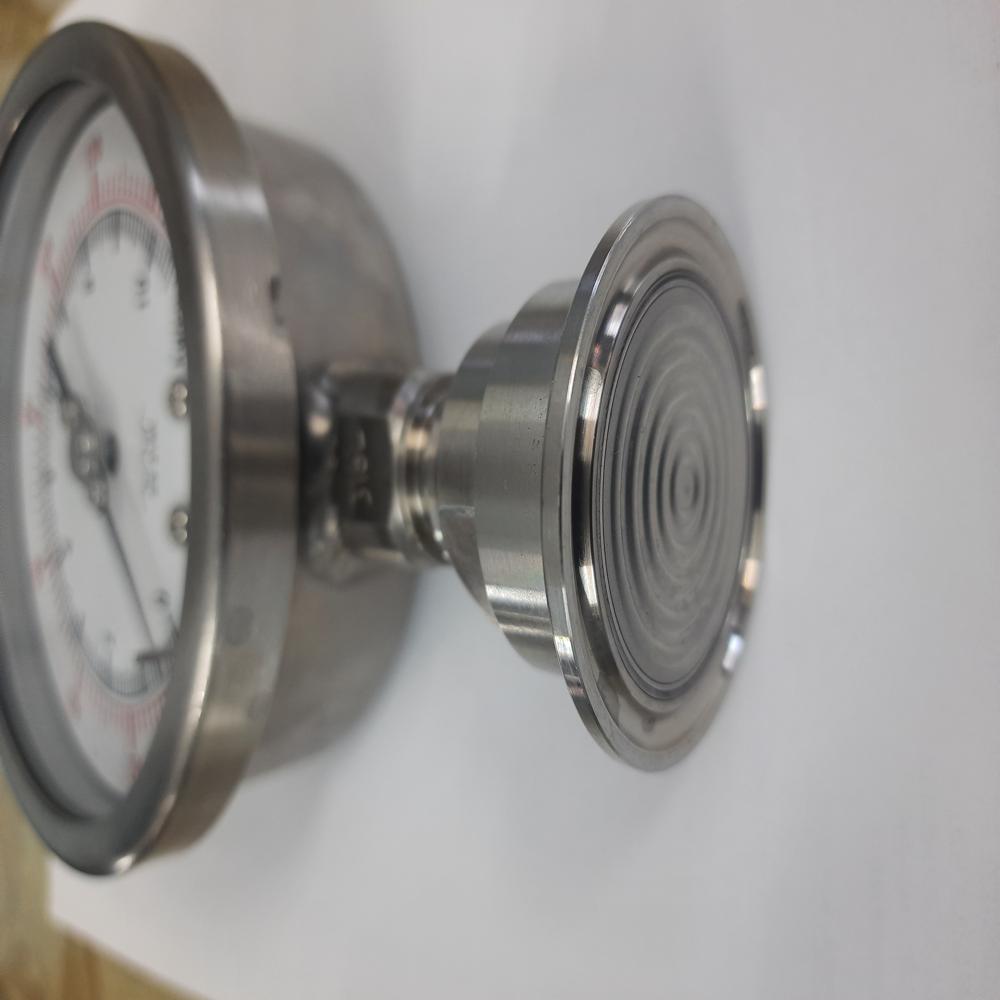

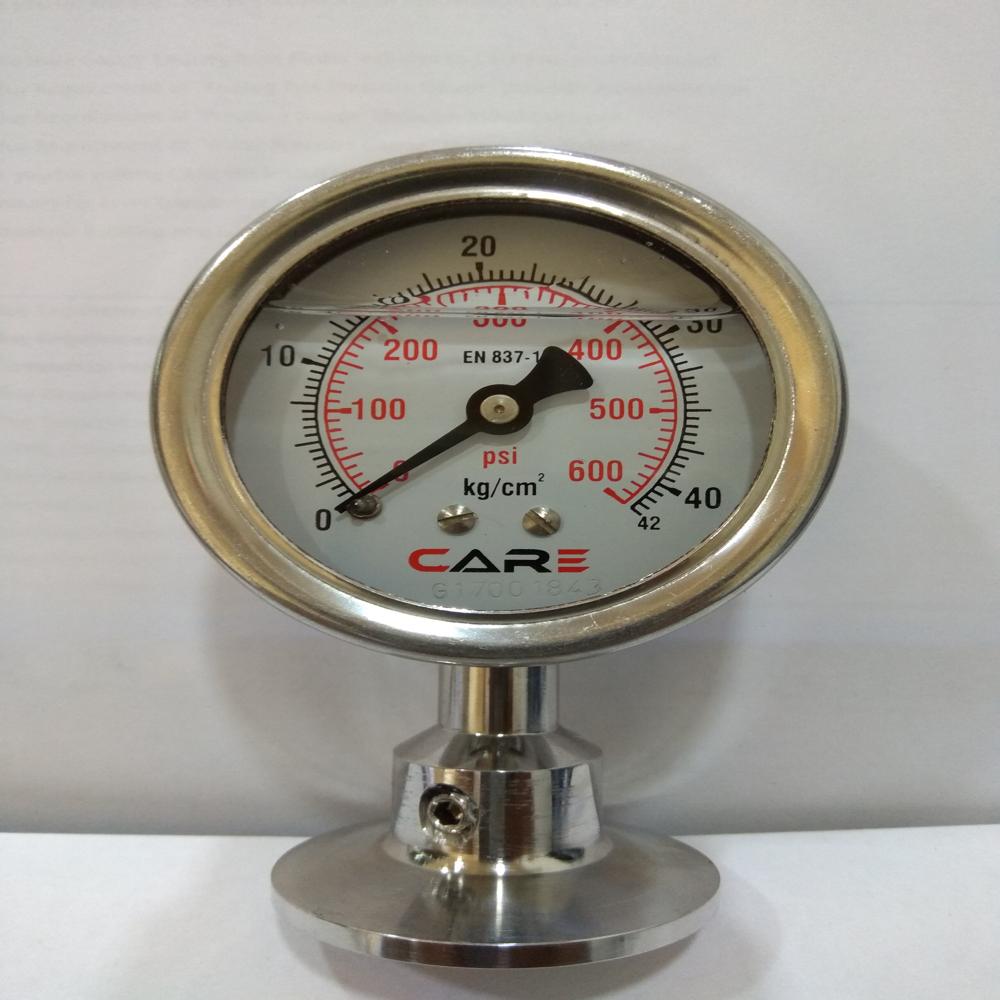

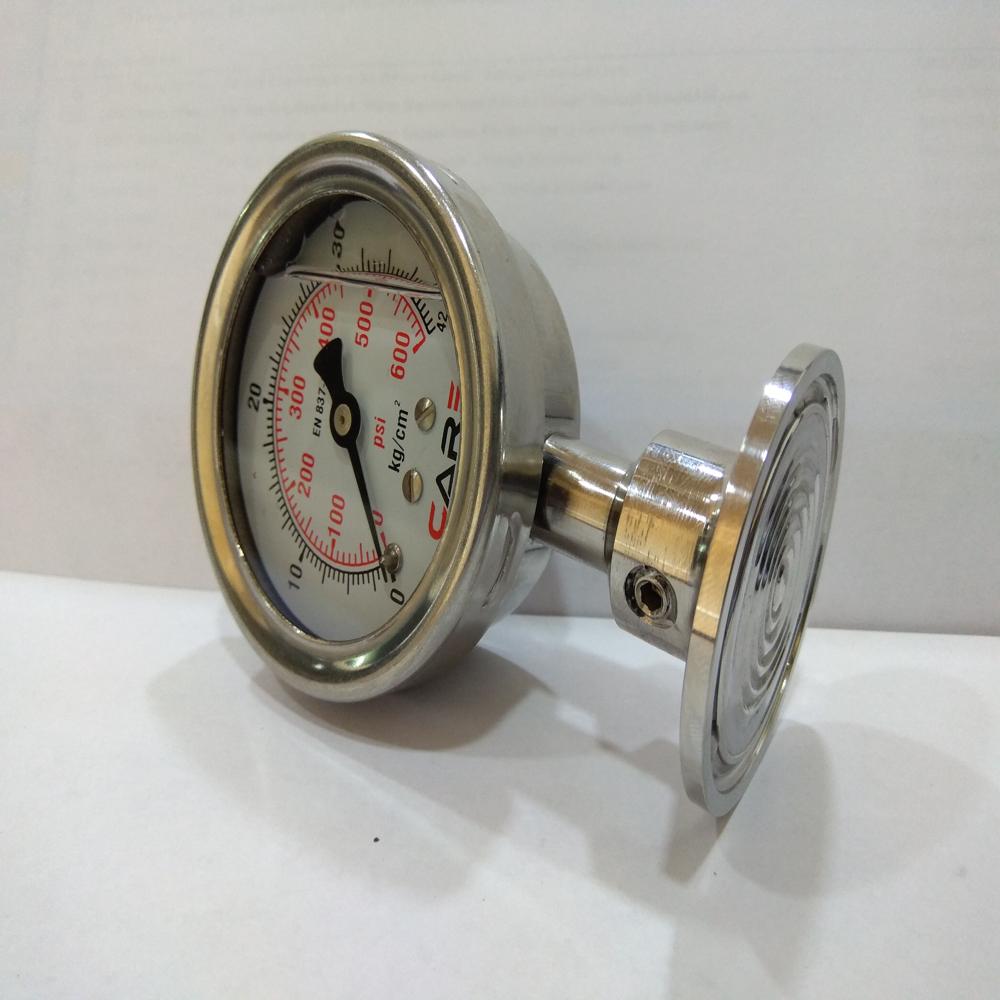

Striving ahead of conventional industry standards, we have mustered up in manufacturing, supplying and exporting a qualitative range of Triclover Sealed Gauges. Available in different specifications, these gauges are used to measure the amount of pressure droplets. Offered gauges are commonly used in food, chemical, pharmaceutical and oil & gas industries. Throughout inspection is done at different levels of production of these gauges to ensure end products are working flawlessly. Triclover Sealed Gauges, we offer are high in demand among the clients for the following significant attributes: Excellent mechanical strength Ability to withstand extreme pressure High precision measurement Low pressure dropout Other details: Nominal Size(mm) 50,63,80,100,150,250 Scale Range 0-2.5 to 100kg/cm2 Accuracy in FSD 1% Thread Connection 40NB & 50NB Triclover connection, 3/8" BSP & NPT Mounting of Gauge Direct Bottom Case and Bezel Drawn steel, SS 304 Pressure Elements Bourdon Tube Diaphragm yes Wetted Parts SS316 and other material on request Application Chemical and Petrochemical, pharmaceutical, dairy and food beverage Optional liquid filled and triclover specifications on requested
FAQs of Triclover Sealed Pressure Gauges:
Q: What is the mounting type of the Triclover Sealed Pressure Gauges?
A: The Triclover Sealed Pressure Gauges have a lower mount type.
Q: What is the scale range of the pressure gauge?
A: The scale range of the Triclover Sealed Pressure Gauges is 0 to 42 bar.
Q: What material is used for the dial and pointer?
A: The dial is made of glass, and the pointer is made of aluminum.
Q: What is the accuracy of the Triclover Sealed Pressure Gauges?
A: The Triclover Sealed Pressure Gauges have an accuracy of 1%.
Q: Are accessories available for this product?
A: Yes, accessories are available on request for the Triclover Sealed Pressure Gauges.
Q: What material is used for sealing, and what grade of stainless steel is used?
A: The seal material is neoprin, and the gauge is made with SS316 grade stainless steel.
Q: Which sensor type is used in the Triclover Sealed Pressure Gauges?
A: The sensor type used is Burdon.
